ccRTP 2.1.2
 All Data Structures Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | Protected Member Functions | Private Attributes | Static Private Attributes
IncomingDataQueueBase Class Reference

#include <queuebase.h>

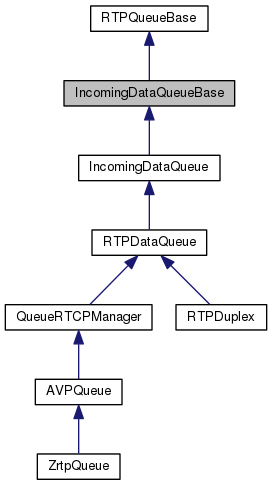

Inheritance diagram for IncomingDataQueueBase:
Inheritance graph
[legend]
Collaboration diagram for IncomingDataQueueBase:
Collaboration graph
[legend]

Public Member Functions

size_t getDefaultMaxRecvPacketSize () const

size_t getMaxRecvPacketSize () const

void setMaxRecvPacketSize (size_t maxsize)

bool setPayloadFormat (const PayloadFormat &pf)
 Set the payload format in use, for timing and payload type identification purposes. More...

uint32 getLocalSSRC () const

uint32 getCurrentRTPClockRate () const
 Get the clock rate in RTP clock units (for instance, 8000 units per second for PCMU, or 90000 units per second for MP2T). More...

PayloadType getCurrentPayloadType () const

timeval getInitialTime () const


Protected Member Functions

 IncomingDataQueueBase ()

virtual ~IncomingDataQueueBase ()

void setLocalSSRC (uint32 ssrc)

uint32 getLocalSSRCNetwork () const

virtual size_t dispatchBYE (const std::string &)
 A plugin point for posting of BYE messages. More...

virtual void renewLocalSSRC ()


Private Attributes

size_t maxRecvPacketSize


Static Private Attributes

static const size_t defaultMaxRecvPacketSize = 65534


Detailed Description

Author
Federico Montesino Pouzols fedem.nosp@m.p@al.nosp@m.tern..nosp@m.org

Definition at line 294 of file queuebase.h.

Constructor & Destructor Documentation

IncomingDataQueueBase::IncomingDataQueueBase ( )
inlineprotected

Definition at line 320 of file queuebase.h.

virtual IncomingDataQueueBase::~IncomingDataQueueBase ( )
inlineprotectedvirtual

Definition at line 324 of file queuebase.h.

Member Function Documentation

virtual size_t RTPQueueBase::dispatchBYE ( const std::string &  )
inlineprotectedvirtualinherited

A plugin point for posting of BYE messages.

Parameters
-reason to leave the RTP session.
Returns
number of octets sent.

Reimplemented in QueueRTCPManager.

Definition at line 228 of file queuebase.h.

PayloadType RTPQueueBase::getCurrentPayloadType ( ) const
inlineinherited

Definition at line 198 of file queuebase.h.

uint32 RTPQueueBase::getCurrentRTPClockRate ( ) const
inlineinherited

Get the clock rate in RTP clock units (for instance, 8000 units per second for PCMU, or 90000 units per second for MP2T).

This value depends on what payload format has been selected using setPayloadFormat().

Returns
clock rate in RTP clock units.

Definition at line 195 of file queuebase.h.

size_t IncomingDataQueueBase::getDefaultMaxRecvPacketSize ( ) const
inline

Definition at line 298 of file queuebase.h.

timeval RTPQueueBase::getInitialTime ( ) const
inlineinherited

Definition at line 201 of file queuebase.h.

uint32 RTPQueueBase::getLocalSSRC ( ) const
inlineinherited

Definition at line 184 of file queuebase.h.

uint32 RTPQueueBase::getLocalSSRCNetwork ( ) const
inlineprotectedinherited

Definition at line 214 of file queuebase.h.

size_t IncomingDataQueueBase::getMaxRecvPacketSize ( ) const
inline

Definition at line 302 of file queuebase.h.

virtual void RTPQueueBase::renewLocalSSRC ( )
inlineprotectedvirtualinherited

Reimplemented in IncomingDataQueue, and RTPDataQueue.

Definition at line 232 of file queuebase.h.

void RTPQueueBase::setLocalSSRC ( uint32  ssrc)
inlineprotectedinherited

Definition at line 211 of file queuebase.h.

void IncomingDataQueueBase::setMaxRecvPacketSize ( size_t  maxsize)
inline
Parameters
maxsizemaximum length of received RTP data packets, in octets. Defaults to the value returned by getDefaultMaxRecvPacketSize().
Note
This method sets a filter for incoming packets. Setting higher values does not necessarily imply higher memory usage (this method does not set any buffer size).

Definition at line 316 of file queuebase.h.

bool RTPQueueBase::setPayloadFormat ( const PayloadFormat pf)
inlineinherited

Set the payload format in use, for timing and payload type identification purposes.

Parameters
pfpayload format to use from now on.
Returns
whether the payload format has been successfully set.

Definition at line 177 of file queuebase.h.

Field Documentation

NAMESPACE_COMMONCPP const size_t IncomingDataQueueBase::defaultMaxRecvPacketSize = 65534
staticprivate

Definition at line 328 of file queuebase.h.

size_t IncomingDataQueueBase::maxRecvPacketSize
private

Definition at line 330 of file queuebase.h.


The documentation for this class was generated from the following files:
