This article describes an early version of the qalbum photo-album generator. Though qalbum now has more features and automation, its implementation still uses XQuery basically as described in this older article. I've updated the code described in this article to that of the actual XQuery 1.0 specification.

If you find a mistake, or something is unclear, please email so I can fix the text.

Generating XML and HTML using XQuery

by Per Bothner

Most people think of XQuery as a query language for processing XML "databases". But it is also a very nice language for generating XML and HTML, including web pages. In this article we will look at XQuery from this angle.

Tools for Generating Web Pages

There are many tools for generating web pages. Many of these are based on templates: You write an HTML page, but you can embed within it expressions that get calculated by the web server. Here are some popular examples:

You can do the same thing with XQuery:

<p>3*4 is: {3*4}.</p>

There is one important difference between XQuery and most template systems: In the latter you can nest expressions in some programming language inside HTML. With XQuery you can also nest HTML inside expressions, as in this loop:

for $i in (1 to 10) return
   <p>{$i}*4 is: {$i*4}</p>

With XQuery, you can also define functions that return HTML fragments, and you can pass those fragments though to other functions. With most template systems, you can only create output fragments as strings, and pass them around as strings.

A Photo-album Application

As an example of how to generate Web pages using XQuery we will show how to create a photo album application. There are lots of such applications around, and while they differ in features, they all have the same basic idea: You throw a bunch of digital images (JPEG files) at the application, and it generates a bunch of web pages. The overview page shows many smaller thumbnail images; if you click on one, you get a bigger version of that image.

There are two basic approaches to doing this:

We will show how you can use XQuery for either approach, starting out with how to generate static web pages in advance. The software, with usage and installation instructions, is available at

For larger web applications it is a good idea to separate out the presentation (web page layout) from logic (calculating what to present and performing requested actions). This is especially important when different people are responsible for the different aspects of the application. For this modest application we're more interested in simplicity, but it is still a good idea to put HTML element constructors in different functions than the ones that contain non-trivial logic.

For each album, we start with an XML file that contains a list of JPEG image files, with some information about each picture. This XML file can be generated using a script that scans the JPEG files in a directory, or it can be created with a text editor. I use a combination of scripts and manual editing, as described at the web address above, but that's not relevant to our goal of learning and using XQuery.

The following sample index.xml file describes six digital pictures from a car trip to the West Coast of Norway in the summer of 2001. Each photograph is described by a <picture> element. Each picture may be available in three resolutions:

Listing 1 shows a sample index.xml file (abbreviated).

Listing 1: An index.xml file describing some pictures

<?xml version="1.0"?>
  <title>Trip to Norway</title>
  <text>July 28-30, 2001 Nathan, Per, and John took a quick round trip to the
    Norwegian fjord country.  Here are some highlights.</text>

  <picture id="Lillehammer22">
    <caption>Lillehammer: Ski-jump practice</caption>
    <text>The Lillehammer olympic 90m ski-jumping hill is used for Summer practice.
      You can see a jumper landing.</text>
    <full-image width="1280" height="960">Lillehammer22.jpg</full-image>
    <image width="740" height="555">Lillehammer22p.jpg</image>
    <small-image width="240" height="180">Lillehammer22t.jpg</small-image>

  <!-- more picture elements as desired -->

  <picture id="ViaValdres2">
    <caption>Valdres valley</caption>
    <full-image width="1280" height="960">ViaValdres2.jpg</full-image>
    <image width="740" height="555">ViaValdres2p.jpg</image>
    <small-image width="240" height="180">ViaValdres2t.jpg</small-image>


Generating the overview page

Our first task is to generate the overview page. We want at most three thumbnails per line, producing something as shown in Figure 1.

Figure 1: The overview page shows clickable thumbnails of pictures.

This is a nice example that illustrates the kind of non-trivial re-arranging that would be difficult to do with a template system or with XSLT, and tedious to do with a language like Java.

Here is the "main program" to generate the overview page:

let $group := doc("index.xml")/group

This is simple enough: We call the document function to read the index.xml file. This returns the document root, so we do /group to select the top-level group node, which we pass to the make-group-page function, which does the actual work of creating the web page. (All XQuery function have to be in some namespace. For convenience, we use the standard local prefix.)

declare function local:make-group-page($group) {
    <style type="text/css">
      a.textual {{ text-decoration: none }}
      table.row {{ padding: 10px }}
      img {{ border: 0 }}
  <body bgcolor="#00AAAA">
{   local:make-rows(0, $group/picture)}

The value returned by a call to make-group-page is calculated by an element constructor expression, which looks like normal XML data, except you can use curly braces ({...}) to embed XQuery expressions. For example, the <h2> HTML element contains an XQuery expression that selects the <title> child of the $group parameter, and then selects the children (usually a text node) of that <title> child. Note that double curly braces ({{...}}) in the <style> element are used for curly braces that should appear as-is.

Things start to get interesting when we get to the call to make-rows. This is a recursive helper used to divide a sequence of <picture> elements into rows of at most three. It's quite straightforward if you're comfortable with recursive functions. (If you're not comfortable using recursion, it may seem mysterious—but it does work.) The $pictures parameter is a sequence of the <picture> elements we haven't dealt with yet. If the list is empty, we return nothing (the empty sequence ()). If there are 3 or fewer pictures, we pass them to the format-row function, which makes a single row of thumbnail pictures. If there are exactly 4 pictures total, we take the first two pictures, and pass them the format-row function, which puts 2 thumbnail pictures in one row, and then we do the same with the remaining 2 pictures. Otherwise, there are more than 3 pictures, so we take the first 3 pictures, put them in a row using format-row, then we take the rest of the pictures (starting at picture 4), and recursively call make-rows. This processes the rest of the pictures in the same way, putting 3 pictures in a row each time, until we come to the end.

This is the make-rows function:

(: Process a sequence of <picture> elements, grouping them into
 : rows of at most 3, for the thumbnail page.
 : $prev:  An integer giving the number of <picture>s in
 :   this current sequence that precede those in $pictures.
 : $pictures:  Remaining <picture> elements to process.
 : Returns formatted HTML for the input $pictures.
declare function local:make-rows($prev, $pictures) {
  let $count := count($pictures) return
  if ($count = 0) then ()
  else if ($count <= 3) then
  else if ($count = 4 and $prev = 0) then
    (: A special case:  If there are 4 pictures in a row,
     : then group them as 2 rows of 2 rather than 3 + 1. :)
    (local:format-row(sublist($pictures, 1, 2)),
     local:format-row(sublist($pictures, 3, 2)))
     (local:format-row(sublist($pictures, 1, 3)),

The format-row function loops over a sequence of <picture> elements and calls make-thumbnail on each one. If the <picture>has a <caption> child, it is placed underneath the thumbnail. We wrap each thumbnail plus its caption inside an <a> HTML link wrapped inside an HTML <table>, finally wrapping the entire row in another HTML <table>.

declare function local:format-row($row) {
  "&#10;  ", (: emit a newline for readabilty :)
  <table width="90%" class="row"><tr>{
  for $pic in $row return
   <table bgcolor="black" cellpadding="0" frame="border"
      border="0" rules="none">
        <td align="center"><a href="{$pic/@id}.html">{
      { if ($pic/caption) then
        <td bgcolor="#FFFF99" align="center"><a class="textual"
      else ()}

Finally, make-thumbnail looks for a <small-image> child that contains the actual name of the JPEG file, and calls make-img to emit the <img> image link. If there is no <small-image>, we look for a <image> or a <full-image> element, and have the browser scale the image to a smaller size. (In that case the browser has to download the bigger image, only to throw away most of the detail, so this is not something you want to do normally.)

declare function local:make-thumbnail($pic) {
  if ($pic/small-image) then
    local:make-img($pic/small-image, 1.0)
  else if ($pic/image) then
    local:make-img($pic/small-image, 0.5)
  else if ($pic/full-image) then
    local:make-img($pic/full-image, 0.2)
  ( "(missing small-image)", string($pic), ")" )

declare function local:make-img($picture, $scale) {
  <img border="1" src="{$picture}" width="{number($picture/@width) * $scale}"
    height="{number($picture/@height) * $scale}" />

A Slight Refinement

The code so far ignores any children of the top-level <group> except for <picture>. However, if you look at the original index.xml example, you'll see that the <group> has a <text> child. Let's place any such <text> contents in the appropriate place on the overview page. Another sometimes useful feature is to be able to explicitly specify how the pictures are to be organized into rows, rather than depend on the default maximum of three per row. You can do that by editing the index.xml file to place a <row> element around one or more <picture> elements to specify that these should go in a row by themselves:

declare function local:make-group-page($group) {
  ... rest as before ..
{   local:find-rows((), $group/*)}

(: Process the children of a <group>, grouping thumbnails into rows.
 : $pictures:  Sequence of <picture>s that need to be split into rows.
 : $unseen: sequence of remaining children we have not processed yet.
declare function local:find-rows($pictures, $unseen) {
  if (empty($unseen)) then local:make-rows(0, $pictures)
    let $next := item-at($unseen, 1),
        $rest := sublist($unseen, 2)
      typeswitch ($next)
      case element(row) return
        (local:make-rows(0, $pictures),local:format-row($next/*),local:find-rows((), $rest))
      case element(date) return (: ignore <date> children here. :)
        (local:make-rows(0, $pictures),local:find-rows((), $rest))
      case element(title) return (: ignore <title> children here. :)
        (local:make-rows(0, $pictures),local:find-rows((), $rest))
      case element(text) return (: format <text> as a paragraph. :)
        (local:make-rows(0, $pictures),<p>{$next/node()}</p>,local:find-rows((), $rest))
      default return
        local:find-rows(($pictures,$next), $rest)

The initial call to find-rows sets $pictures to the empty sequence, and $unseen to the sequence of all the child elements of the top-level <group>. If $unseen is the empty sequence, we're done, and we just call make-row to wrap up the last row. Otherwise, we look at the first element of $unseen.

We use a typeswitch expression to do the appropriate thing depending on the type of that first element. A typeswitch evaluates an expression (in this case $next, the first value of the $unseen sequence). Then it searches through the case clauses, each of which specifies a type. For example, element(row,*) is a type that matches all element nodes whose tag is row, whatever their type annotation. (If you import a Schema for the index.xml file format and validate the documents, then you can get away with writing plain element(row).) The typecase selects the first case clause such that the $next value is an instance of the type, and evaluates the corresponding return expression. If there is no matching case, it evaluates the default return instead.

If the $next value is a <row> element, we first pass any previously seen $pictures to make-row so it can split those into rows; then we pass the children of the <row> element to format-row to create a single row; and then we recursively call find-rows to process the $rest of the sequence. The next two cases are to just skip any <title> and <date> elements since they are handled elsewhere. The logic for handling a <text> element is similar to that for <row> except that we wrap the contents of the <text> in a <p> paragraph. Finally, the default case handles <picture> elements with a recursive call that moves the $next element over to the $pictures sequence.

Generating the picture pages

Now let us look at how we can generate a web page for each picture, something like that shown in Figure 2.

Figure 2: A web page for viewing a single picture.

The first tricky part is dealing with the links for the previous and next picture. The other tricky part is that we want to support multiple styles. The existing code supports three styles that each image can be displayed in:

Thus we need to generate 3 HTML pages times the number of <picture> elements. Exactly how to write all these files is somewhat implementation dependent. There are (at least) three ways to do it:

The Qexo ( implementation of XQuery includes a write-to built-in function. It takes two parameters—a value (normally an element node) and a file name—and writes the former to the latter, using HTML-compatible XML (XHTML) syntax. It returns an empty sequence. Other XQuery implementations may have similar functions.

The outermost expression of the new XQuery program writes both the index.html overview file and each of the individual picture pages, the latter in each of the 3 styles. Writing the picture pages is done by two nested loops, the outer one looping over <picture> elements, and the inner one looping over the 3 styles. Each then calls the picture function to generate each picture page, and uses write-to to write the HTML to the appropriate file. Each file name is generated by concatenating the picture's id attribute, the style string, and the .html extension.

let $group := doc("index.xml")/group,
    $group-date := $group/date,
    $group-name := $group/title,
    $pictures := $group//picture,
    $count := count($pictures)
  return (
    write-to(local:make-group-page($group), "index.html"),
    for $i in 1 to $count
    for $style in ("", "info", "large")
    let $picture := item-at($pictures,$i),
        $prev := if ($i > 1) then item-at($pictures, $i - 1) else (),
        $next := if ($i < $count) then item-at($pictures, $i + 1) else (),
        $date := if ($picture/date) then $picture/date else $group-date
        local:picture($picture, $group, string($picture/@id),
          $prev, $next, $date, $style),
          concat(string($picture/@id), $style, ".html"))

The standard function item-at selects a value from a sequence using an index (starting at one). We've already looked at local:make-group-page. Listing 2 is the big picture function, which returns a single picture page as an <html> element.

Listing 2: The picture Function

(: Generate a page picture image with links etc.
 : $picture:  The <picture> node to use.
 : $group:  The enclosing <group>.
 : $name:  The string-value of the pictures's id attribute.
 : $prev:  The previous <picture> or the empty sequence if there is none.
 : $next:  The next <picture> or the empty sequence if there is none.
 : $date:  The date the picture was taken, as a string, or the empty sequence.
 : $style:  The style and size.  Currently only "large" or "" (medium)
 :   or "info".  The "info" style show a thumbnail, plus EXIF information,
 :   plus links to the raw JPGs.
declare function local:picture($picture, $group, $name, $prev, $next, $date, $style) {
    <meta content="text/html; charset=UTF-8" http-equiv="Content-Type"/>
    <link rel="up" href="index.html" />{
    (: Note how we pre-pend whitespace to properly indent the <links>s. :)
    if (empty($prev)) then ()
    else ("
    ",<link rel="prev" href="{$prev/@id}{$style}.html" />),
    if (empty($next)) then ()
    else ("
    ",<link rel="next" href="{$next/@id}{$style}.html" />)}
    <style type="text/css">
      a {{ padding: 1 4; text-decoration: none; }}
      td {{ padding-left: 0; border-style: none }}
      span.button {{ border-width: thin; background-color: #FFFF99;
        border-style: solid }}
    </style>{( (: (Note what we have to do to add an XQuery comment here!)
     : Next we generate a JavaScript handler, to handle pressing the
     : keys 'n' and 'p' for navigation.  The indentation of the code
     : isn't "logical", but it makes the JavaScript code look nice. :) )}
    <script language="JavaScript">
      document.onkeypress = handler;
      function handler(e) {{
        var key = navigator.appName == 'Netscape' ? e.which
          : window.event.keyCode;{
        if (empty($next)) then ()
        else (: if 'n' was pressed, goto $next :)
        if (key == 110) { location="',
          string($next/@id), $style, '.html"; return true; }'),
        if (empty($prev)) then ()
        else (: if 'p' was pressed, goto $prev :)
        if (key == 112) { location="',
          string($prev/@id), $style, '.html"; return true; }')}
        return routeEvent(e); }}
  <body bgcolor="#00AAAA">
{ local:nav-bar($picture, $name, $prev, $next, $style)}
{ local:make-header($picture, $group)}
{ picture-text($picture)}
{ if (empty($date)) then () else <p>Date taken: {$date}.</p>}
{ let $full-image := $picture/full-image,
      $image := $picture/image
  if ($style = "info") then (
      <td style="padding: 20 20 20 10">{local:make-thumbnail($picture)} </td>
    <table><tr><td>Plain JPEG images:</td>
    {local:raw-jpg-link($picture/full-image, "Original")}
    if ($full-image) then "Scaled" else "Original")}
    {local:raw-jpg-link($picture/small-image, "Thumbnail")}
  else if ($style="large" and $full-image) then
    local:make-img($full-image, 1)
  else if ($style="large" and $image
           and number($image/@width) <= 640
           and number($image/@height) <= 640) then
    local:make-img($image, 2)
  else if ($full-image) then
    local:make-img($full-image, 0.5)
    local:make-img($image, 1)

The basic structure of this should by now be familiar. The JavaScript function handler (in the <script>) goes to the next or previous page if the letter 'n' or 'p' on the keyboard is pressed. (The strange layout of the code is to make the generated HTML look nice.) Note how the XQuery comment before the <script> section is nested inside parentheses (so we get a syntactically valid empty sequence), which is nested inside the curly brace escapes. Note how we check the $style parameter to select which JPEG image to show, and whether we need to scale it. The "info" style generates a picture with information about the picture itself, as in Figure 3. This so-called EXIF information is generated by the camera, and has been extracted from the JPEG file using the jhead program (

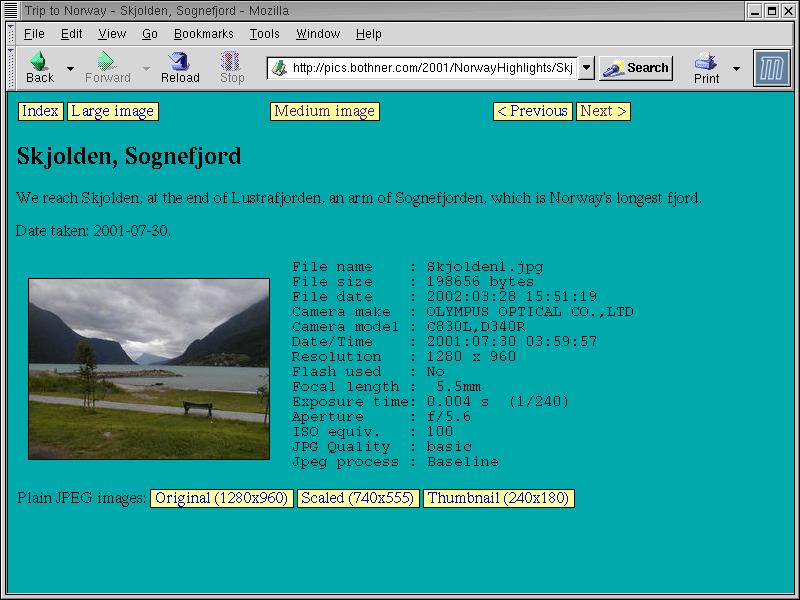

Figure 3: A page giving detailed information about a single picture.

The navigation bar (i.e. the row of buttons on the top of the page) is generated by the nav-bar function:

(: Create a 1-row navigation-bar: next, prev etc :)

declare function local:nav-bar($picture, $name, $prev, $next, $style) {
    <td><span class="button"><a href="index.html">Index</a></span></td>{
    if ($style="info") then () else ("
    ",<td><span class="button">{local:make-link($name, "info", "Info")}</span></td>),
    if ($style="large") then () else ("
    ",<td width="200" align="left"><span class="button">{
      local:make-link($name, "large", "Large image")}</span></td>),
    if ($style="") then () else ("
    ",<td width="200" align="left"><span class="button">{
      local:make-link($name, "", "Medium image")}</span></td>)}
    <td width="100" align="right">{
      if ($prev) then
        <span class="button">{local:make-link($prev/@id, $style, " < Previous ")
      }</span> else ()}</td>
    <td width="100" align="left">{
      if ($next) then
        <span class="button">{local:make-link($next/@id, $style, " Next > ")}</span>
      else ()}</td>

This is standard use of HTML tables to arrange the clickable buttons in a row. The <span class="button"> acts with the top-level <style>. Notice the use of conditionals to only generate the buttons that make sense.

Finally, the last 5 small functions are as follows:

declare function picture-text($picture) {
  for $text in $picture/text return <p>{$text/node()}</p>

declare function local:make-title($picture, $group) {
  concat(string($group/title), " - ",
         if (empty($picture/caption)) then string($picture/@id)
         else string($picture/caption))

declare function local:make-header($picture, $group) {
  <h2>{if ($picture/caption) then $picture/caption/node()
                else $group/title/node()}</h2>

declare function local:raw-jpg-link($image, $description) {
  if (empty($image)) then () else
  <td><span class="button"><a href="{$image}">{$description} ({

declare function local:make-link($picture-name, $style, $text) {
  <a href="{$picture-name}{$style}.html">{$text}</a>

Running XQuery programs as Servlets

Servlets are a popular framework for having a web server process a web (HTTP) request. This approach is both efficient and powerful, and it is part of the Java Enterprise framework. JSP (JavaServer Pages, mentioned earlier) is built on top of servlets. A JSP page is an HTML template that can contain embedded Java expressions and commands. A JSP-capable web server automatically translates (if needed) a JSP page into a Java servlet class. Such a server has various ways you can configure it to select which servlet is executed for a given request URL.

The photo-album application would be very difficult to write using JSP. However, it is quite easy to do it using XQuery. There is at this time no standard for how web servers can cause XQuery programs to be executed in response to a web request, so we will look at how the Qexo implementation supports servlets. Most of the XQuery program is the same as before. What is different is the top-level "main" expression:

let $path := request-servlet-path(),
    $last-slash := last-index-of($path, "/"),
    $file := substring($path, $last-slash+1),
    $xml-file := concat("file:", servlet-context-realpath(),
                        substring($path, 1, $last-slash), "index.xml"),
    (: or just plain: $xml-file := "index.xml" :)
    $group := doc($xml-file)/group
  if ($file = "index.html") then
    let $group-date := $group/date,
        $group-name := $group/title,
        $pictures := $group//picture,
        $count := count($pictures),
        $style := if (last-index-of($file, "info.html") > 0) then "info"
            else if (last-index-of($file, "large.html") > 0) then "large"
            else "",
        $base-length := string-length($file) - string-length($style) - 5,
        $base := substring($file, 1, $base-length),
        $i := (for $j in 1 to $count return
            if ($base = string(item-at($pictures,$j)/@id)) then $j else ())
        if (empty($i)) then
          error-response(404, $file)
          let $picture := item-at($pictures,$i),
              $id := string($picture/@id),
              $prev :=
                if ($i = 0) then ()
                else item-at($pictures, $i - 1),
              $next :=
                if ($i >= $count) then ()
                else item-at($pictures, $i + 1),
              $date :=
                if ($picture/date) then $picture/date
                else $group-date
              local:picture($picture, $group, string($picture/@id),
                      $prev, $next, $date, $style)

To get the request URL relative to the servlet context we use Qexo's request-servlet-path function. We extract the directory name and the file name using some string operations. (The last-index-of function is a Qexo function that returns the last position in the first argument of a sub-string matching the second argument, or 0 if the first argument does not contain the second argument.) Next we need to read the correct index.xml file. One way to find it is to use the Qexo function servlet-context-realpath, which gives us the root directory of the current (pics) web application; to that we append the directory that we extracted from the request, and the constant "index.xml". (We prepend "file:" to make it an absolute URL.) A simpler solution is commented out: just pass "index.xml" to the doc function. This works because a relative URL is resolved against the current base-uri(), which is the URL of the original request. However, the resulting URL is an http: URL, since that's what the base-uri() was, which is less efficient that opening a file directly.

If the requested $file was "index.html" we pass the read $group to local:make-group-page as before, and we're done. Otherwise things are a little complicated.

We need to find the correct <picture> element in the read document, by searching for one that matches the incoming request. There are various ways of doing this, but we need to keep a few concerns in mind:

The call to doc in the picture function must be similarly modified:

declare function local:picture($picture, $group, $name, $prev, $next, $date, $style) {
  if ($style = "info") then (
   (let $path := request-servlet-path(),
         $last-slash := last-index-of($path, "/"),
         $dir := substring($path, 1, $last-slash) return

Otherwise, the servlet version is same as the batch version.

Installing the Servlet under the Tomcat Server

A number of Web servers can run servlets. The servlet specification describes how a web application consists of some number of servlets, static pages, and a web.xml "deployment descriptor". We will show how you can create a application running under the Tomcat server from the photo album program. Tomcat ( is an open-source web server written in Java, and released by the Apache Foundation's Jakarta project ( It is the reference platform for servlets. The instructions here assume you have version 4.1.x of Tomcat installed, and that the value of $CATALINA_HOME where Tomcat is installed is /opt/Tomcat. We also assume a Posix-compatible environment, including an sh-style shell such as GNU bash. (If you use Microsoft Windows you can get these as part of the Cygwin ( environment.) If you have a different environment, or need information beyond these very basic instructions, check out the Tomcat documentation.

We assume you're using the Qexo implementation of XQuery. The Qexo implementation classes are included in the kawa-N.M.jar file containing the Kawa compiled classes, where N.M is the Kawa version number. You will need to install this JAR file somewhere where Tomcat can find it. For example, you can install it in $CATALINA_HOME/shared/lib/kawa-N.M.jar.

Create the actual pics web application. You need to create the directories $CATALINA_HOME/webapps/pics, $CATALINA_HOME/webapps/pics/WEB-INF, and $CATALINA_HOME/webapps/pics/WEB-INF/classes. Under Unix, Linux, or MS-Windows, do the following:

mkdir $CATALINA_HOME/webapps/pics
mkdir $CATALINA_HOME/webapps/pics/WEB-INF
mkdir $CATALINA_HOME/webapps/pics/WEB-INF/classes

You next need to compile the pictures XQuery program to a servlet:

kawa --xquery --servlet -C pictures.xql

This creates a pictures.class file, which you need to install in the $CATALINA_HOME/webapps/pics/WEB-INF/classes directory, so Tomcat can find it:

cp pictures.class $CATALINA_HOME/webapps/pics/WEB-INF/classes/pictures.class

You next need to write the web.xml deployment descriptor. This is an optional file that describes the web application, and goes into the $CATALINA_HOME/webapps/pics/WEB-INF directory. The following is sufficient for the pics application:

<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE web-app
  PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
  <display-name>Web Photo Album</display-name>



The <display-name> element is just a human-readable description of the web application. Each <servlet> element names a servlet, and gives the fully-qualified name of the Java class used to implement it. (In this example, they're the same.) The <servlet-mapping> element specifies which URLs (within the pics web application) cause the named servlet to be called; in this case, all requests that end in the .html extension.

Finally, we need to create some content! For example, we can take the *.jpg files and the index.xml file from the earlier NorwayHighlights and copy the into the web application's directory $CATALINA_HOME/webapps/pics.

If Tomcat isn't already running, start it now:

$(CATALINA_HOME)/bin/ start

After you have started up Tomcat, it by default listens to port 8080. To view the NorwayHighlights album, point your browser at http://localhost:8080/pics/NorwayHighlights/index.html. When Tomcat receives this request, it will invoke the pictures servlet, and the call request-servlet-path() will return /NorwayHighlights/index.html. The $file variable will get set to index.html, so make-group-page is called. If you click a link, the browser sends back a new request, which the servlet handles. Any .jpg image files that might be requested via an <img> or <a> tag, such as http://localhost:8080/pics/NorwayHighlights/Skjolden1.jpg, will not be handled by the servlet. Instead, Tomcat handles those using its default rules, and looks for correspondingly-named files relative to the web application directory, such as $CATALINA_HOME/webapps/pics.

Comparison with JavaServer Pages

We can summarize the advantages of XQuery versus JSP and similar template systems as follows:

Running XQuery programs from CGI scripts

CGI (Common Gateway Interface) scripts are programs or scripts that are executed by a Web server in response to a request. The request parameters are passed to the script as environment variable. The script writes the result parameters followed by the data (usually an HTML page) to standard output, and the server takes that output and sends it back as an HTTP response.

You can have a CGI script call an XQuery processor, and that way use XQuery to generate the result. Using CGI scripts will not give you high performance, especially if you have to start up an XQuery processor on each request. On the plus side, it does not require any server modifications or configuration, and it may be fast enough for some applications. It may be most useful for testing simple XQuery applications.

Another problem running XQuery from CGI scripts is that there is no standard for accessing request parameters from XQuery. The Qexo implementation provides a set of functions that is a subset of the servlet functionality. Qexo provides a wrapper script that runs a servlet, and using the CGI environment variable to provide a subset of the servlet functionality. For example, you can write a little XQuery program like this:

<p>The request URL was: request-url()</p>
<p>{let $query := request-query-string() return
    if ($query)
    then ("The query string was: ",$query)
    else "There was no query string."}</p>

If this is in the file hello.xql, you compile it to a servlet this:

kawa --servlet --xquery -C hello.xql

Copy the resulting .class file(s) to your web server's CGI directory. On Red Hat GNU/Linux using the Apache server, you can do the following (as root):

cp hello*.class /var/www/cgi-bin/

Next find the cgi-servlet program that Kawa builds and installs. If you installed Kawa in the default place, it will be in /usr/local/bin/cgi-servlet. (You'll have this if you installed Kawa from source, but not if you're just using the Kawa .jar file.) Copy or link this program into the same CGI directory, renaming it to hello:

cp /usr/local/bin/cgi-servlet /var/www/cgi-bin/hello

Make sure the files have the correct permissions:

chmod a+r /var/www/cgi-bin/hello*.class /var/www/cgi-bin/hello
chmod a+x /var/www/cgi-bin/hello

Now you should be able to run the Kawa program, using the URL http://localhost/cgi-bin/hello. It may take a few seconds to get the reply, mainly because of the start-up time of the Java VM. That is why servlets are preferred. The CGI interface can still be useful for testing, or when you can't run servlets.

Comparing XSLT and XQuery

XSLT (XSL Transformations, where XSL stands for Extensible Stylesheet Language) is a popular and powerful language for transforming an input XML document into an output document. The latter can be XML, HTML, or plain text. XSLT became a W3C recommendation (standard) in 1999; it is being revised in conjunction with the XQuery standardization process. This is because XSLT uses XPath for expressions and patterns, and XPath is also a subset of XQuery.

The most visible difference between XSLT and XQuery is that an XSLT program (a stylesheet) is actually also an XML document. This can sometimes be useful, but it has the big disadvantage that XSLT stylesheets, in spite of their simplicity, can be both verbose and hard to read.

The more significant difference between XSLT and XQuery is in the execution model, specifically the flow of control. Except for XQuery's unusual data types, it is otherwise a relatively normal programming language, with explicit control flow. (Strictly speaking XQuery does not have a defined control flow, as an implementation is free to evaluate expressions in whatever order is consistent with the standard. Still, you can understand an XQuery program in terms of a conventional execution model.) In contrast, executing an XSLT stylesheet is controlled by a template processor, which matches a node against a set of templates, selects the template whose pattern that most closely matches the input node, and then executes that template. This process may then be repeated by the <xsl:apply-templates> instruction, which recursively calls the template processor on the child nodes of the current node.

Using pattern matching to drive the execution in this way is very powerful and usually convenient. It works best when doing relatively simple conversions that can be expressed using patterns. You can do more complex programming using XSLT, but it can quickly become very awkward and verbose.

Transforming Docbook to HTML using XSLT

As an example application we will look at converting Docbook to HTML, using both XSLT and XQuery. Docbook ( is a popular SGML/XML format for writing technical documentation. Groups that use it for manuals and help files include the Linux Documentation Project and the Gnome project.

Listing 3 is a simple (and incomplete) XSLT stylesheet for translating Docbook to HTML.

Listing 3: An XSLT stylesheet for transforming Docbook to HTML

<?xml version="1.0"?>
<xsl:stylesheet xmlns:xsl="" version="1.0">

<xsl:template match="sect1/title">
<h2 class="title"><xsl:apply-templates/></h2>

<xsl:template match="sect2/title">
<h3 class="title"><xsl:apply-templates/></h3>

<xsl:template match="artheader/title">

<xsl:template match="artheader/subtitle">

<xsl:template match="artheader/authorgroup">

<xsl:template match="biblioentry/abbrev">[<xsl:apply-templates/>]</xsl:template>
<xsl:template match="biblioentry/title"><cite><xsl:apply-templates/></cite></xsl:template>
<xsl:template match="biblioentry/authorgroup"><xsl:apply-templates/>.</xsl:template>

<xsl:template match="article">
<xsl:if test="artheader/title">
<title><xsl:value-of select="artheader/title"/></title>

<xsl:template match="title">

<xsl:template match="abstract">
<div type='abstract'><h3>Abstract</h3><xsl:apply-templates/></div>

<xsl:template match="element">

<xsl:template match="para">

<xsl:template match="screenshot">
<img src='{mediaobject/imageobject/imagedata[@format="PNG"]/@fileref}' />

<xsl:template match="caption">

<xsl:template match="emphasis"><em><xsl:apply-templates/></em></xsl:template>

<xsl:template match="citation">[<xsl:apply-templates/>]</xsl:template>

<xsl:template match="quote">"<xsl:apply-templates/>"</xsl:template>

<xsl:template match="classname"><code><xsl:apply-templates/></code></xsl:template>

<xsl:template match="function"><code><xsl:apply-templates/></code></xsl:template>

<xsl:template match="itemizedlist">

<xsl:template match="listitem">

<xsl:template match="sect1">
<div class="sect1">

<xsl:template match="sect2">
<div class="sect2">

<xsl:template match="programlisting">

<xsl:template match="bibliography">
<div class="bibliography"><h2>Bibliography</h2><xsl:apply-templates/></div>

<xsl:template match="biblioentry">


Transforming Docbook to HTML using XQuery

In contrast, Listing 4 is an XQuery program for doing the same Docbook-to-HTML translation. Since XQuery doesn't have XSLT's template-matching driver, we have to write explicit control flow using recursive function calls. The typeswitch expression is useful for selecting between different node types, but unfortunately XQuery type expressions are not as expressive as XPath patterns, so more complex patterns may need explicit logic.

Note especially how context patterns like artheader/title are handled. The idea is that in place of the XSLT rules that use the artheader context, we use a convert-header function.

An alternative method for handling "context" is to pass it as an explicit parameter like the $level parameter of convert-title.

Listing 4: An XQuery program to transform Docbook to HTML

declare function local:convert-children ($x) {
  for $y in $x/node() return local:convert-node($y)

declare function local:convert-title($x, $level) {
  if ($level <= 1) then <h1 class="title">{$x/node()}</h1>
  else if ($level = 2) then <h2 class="title">{$x/node()}</h2>
  else if ($level = 3) then <h3 class="title">{$x/node()}</h3>
  else if ($level = 4) then <h4 class="title">{$x/node()}</h4>
  else if ($level = 5) then <h5 class="title">{$x/node()}</h5>
  else <h6 class="title">{$x/node()}</h6>

declare function local:convert-div-children ($x, $level) {
  for $y in $x/node() return
    typeswitch ($y)
      case element(title) return local:convert-title($y, $level)
      default return local:convert-node($y)

declare function local:convert-header ($x) {
  for $y in $x/node() return
    typeswitch ($y)
      case element(title) return
      case element(subtitle) return
      case element(authorgroup) return
      default return ( )

declare function local:convert-biblioentry ($x) {
  for $y in $x/node() return
    typeswitch ($y)
      case element(abbrev) return
      case element(title) return
      case element(authorgroup) return
      default return local:convert-node($y)

declare function local:convert-node ($x) {
  typeswitch ($x)
    case element(article) return
    case element(artheader) return
    case element(title) return
    case element(authorgroup,*) return
    case element(author) return
    case element(abstract) return
     <div type='abstract'><h3>Abstract</h3>{local:convert-children($x)}</div>
    case element(para) return
    case element(screenshot) return
      <img src="{string($x/mediaobject/imageobject/imagedata[@format="PNG"]/@fileref)}" />
    case element(caption) return
    case element(emphasis) return
    case element(citation) return
    case element(quote) return
    case element(classname) return
    case element(function) return
    case element(itemizedlist) return
    case element(listitem) return
    case element(sect1) return
      <div class="sect1">{local:convert-div-children($x, 2)}</div>
    case element(sect2) return
      <div class="sect2">{local:convert-div-children($x, 3)}</div>
    case element(programlisting) return
    case element(informalfigure) return
    case element(bibliography) return
      <div class="bibliography"><h2>Bibliography</h2>{local:convert-children($x)}</div>
    case element(biblioentry) return
    case element(firstname) return
    case element(surname) return
    default return ($x)

let $doc := input()
let $artheader := $doc/article/artheader
let $title := $artheader/title
{if ($title) then <title>{local:convert-children($title)}</title> else ()}

These two stylesheets are of comparable size and complexity. The XSLT is slightly shorter if you're counting characters (2731 versus 3431), but the difference is minor, and this is the kind of application that is XSLT's strength. So my advice is: If you have a task that matches XSLT's strength, by all means use XSLT. However, if you have a task that is a mix of XSLT-style transformation combined with some control logic, consider using XQuery, even for the part of the task that is XSLT-like: The advantage of XSLT over XQuery in applications best suited for XSLT is relatively minor, while the pain of writing more complex logic in XSLT instead of XQuery is considerable! The photo-album is an application I first wrote in XSLT, but I was able to easily make significant improvements when I re-wrote it in XQuery.


We have looked at how you can use XQuery to generate XML and HTML web pages. We have discussed how you can use XQuery servlets for applications inside Web servers, and compared how XQuery can be used as an alternative to XSLT.

Copyright 2002, 2006 (C) Per Bothner. <>

Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License, version 1.1.
