OutgoingZRTPPkt Class Reference

#include <ZrtpQueue.h>

Inheritance diagram for OutgoingZRTPPkt:
Inheritance graph
[legend]

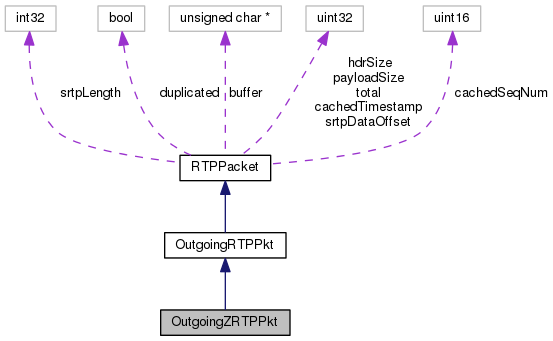

Collaboration diagram for OutgoingZRTPPkt:
Collaboration graph
[legend]

Public Member Functions

 OutgoingZRTPPkt (const unsigned char *const hdrext, uint32 hdrextlen)
 Construct a new ZRTP packet to be sent. More...

 ~OutgoingZRTPPkt ()

void setPayloadType (PayloadType pt)

void setSeqNum (uint16 seq)
 Sets the sequence number in the header. More...

void setTimestamp (uint32 pts)

void setSSRC (uint32 ssrc) const
 Set synchronization source numeric identifier. More...

void setSSRCNetwork (uint32 ssrc) const
 Set synchronization source numeric identifier. More...

void setMarker (bool mark)
 Specify the value of the marker bit. More...

void protect (uint32 ssrc, CryptoContext *pcc)
 Called packet is setup. More...

bool operator== (const OutgoingRTPPkt &p) const
 Outgoing packets are equal if their sequence numbers match. More...

bool operator!= (const OutgoingRTPPkt &p) const
 Outgoing packets are not equal if their sequence numbers differ. More...

uint32 getHeaderSize () const
 Get the length of the header, including contributing sources identifiers and header extension, if present. More...

const uint8 *const getPayload () const

uint32 getPayloadSize () const

PayloadType getPayloadType () const

uint16 getSeqNum () const

uint32 getTimestamp () const

uint8 getProtocolVersion () const

bool isPadded () const
 Ask whether the packet contains padding bytes at the end. More...

uint8 getPaddingSize () const
 Get the number of octets padding the end of the payload section. More...

bool isMarked () const
 Ask whether the packet is marked (for isntance, is a new talk spurt in some audio profiles). More...

bool isExtended () const
 Ask whether the packet contains header extensions. More...

uint16 getCSRCsCount () const
 Get the number of contributing sources specified in the packet header. More...

const uint32 * getCSRCs () const
 Get the 32-bit identifiers of the contributing sources for the packet as an array, of length getCSRCsCount(). More...

uint16 getHdrExtUndefined () const
 Get the first 16 bits (in network order) of the header of the RTP header extension. More...

uint32 getHdrExtSize () const
 Get the length (in octets) of the data contained in the header extension. More...

const unsigned char * getHdrExtContent () const
 Get the content of the header extension. More...

const unsigned char *const getRawPacket () const
 Get the raw packet as it will be sent through the network. More...

uint32 getRawPacketSize () const
 Get the raw packet length, including header, extension, payload and padding. More...

uint32 getRawPacketSizeSrtp () const

size_t getSizeOfFixedHeader () const

void reComputePayLength (bool padding)
 Re-compute payload length. More...

struct RFC2833PayloadgetRaw2833Payload (void)
 Fetch a raw 2833 packet. More...

uint16 get2833Duration (void)
 Fetch 2833 duration field. More...

void set2833Duration (uint16 timestamp)
 Set 2833 duration field. More...


Protected Member Functions

void endPacket ()
 Free memory allocated for the packet. More...

RTPFixedHeadergetHeader () const
 Return low level structure for the header of the packet. More...

void setExtension (bool e)

const RTPHeaderExtgetHeaderExt () const
 Get a pointer to RTPHeaderExt pointing after the RTP header (fixed part plus contributing sources). More...

uint32 getRawTimestamp () const
 Obtain the absolute timestamp carried in the packet header. More...

void setbuffer (const void *src, size_t len, size_t pos)


Protected Attributes

uint16 cachedSeqNum
 Packet sequence number in host order. More...

uint32 cachedTimestamp
 Packet timestamp in host order (includes initial shift). More...

uint32 srtpDataOffset
 Offset into packet memory pointing to area for SRTP data. More...

int32 srtpLength
 Lebgth of additional SRTP data. More...

uint32 total
 total length, including header, payload and padding More...

uint32 payloadSize
 note: payload (not full packet) size. More...


Detailed Description

Definition at line 889 of file ZrtpQueue.h.

Constructor & Destructor Documentation

OutgoingZRTPPkt::OutgoingZRTPPkt ( const unsigned char *const  hdrext,
uint32  hdrextlen
)

Construct a new ZRTP packet to be sent.

A new copy in memory (holding all this components along with the fixed header) is created.

Parameters
hdrextwhole header extension.
hdrextlensize of whole header extension, in octets.
OutgoingZRTPPkt::~OutgoingZRTPPkt ( )
inline

Definition at line 902 of file ZrtpQueue.h.

Member Function Documentation

void RTPPacket::endPacket ( )
protectedinherited

Free memory allocated for the packet.

Definition at line 167 of file rtppkt.cpp.

uint16 RTPPacket::get2833Duration ( void  )
inlineinherited

Fetch 2833 duration field.

Returns
2833 duration in native host machine byte order.

Definition at line 485 of file rtppkt.h.

const uint32* RTPPacket::getCSRCs ( ) const
inlineinherited

Get the 32-bit identifiers of the contributing sources for the packet as an array, of length getCSRCsCount().

Returns
An array of CSRC identifiers as they are in the packet (in network order).

Definition at line 212 of file rtppkt.h.

uint16 RTPPacket::getCSRCsCount ( ) const
inlineinherited

Get the number of contributing sources specified in the packet header.

Definition at line 201 of file rtppkt.h.

const unsigned char* RTPPacket::getHdrExtContent ( ) const
inlineinherited

Get the content of the header extension.

Returns
NULL if the packet has no header extension, otherwise a pointer to the packet header extension content.

Definition at line 255 of file rtppkt.h.

uint32 RTPPacket::getHdrExtSize ( ) const
inlineinherited

Get the length (in octets) of the data contained in the header extension.

Note that this length does not include the four octets at the beginning of the header extension.

Returns
0 if the packet has no header extension, otherwise the length.
Note
0 is a valid value for this field, so RTPPacket::isExtended() should be used.

Definition at line 243 of file rtppkt.h.

uint16 RTPPacket::getHdrExtUndefined ( ) const
inlineinherited

Get the first 16 bits (in network order) of the header of the RTP header extension.

Its meaning is undefined at this level.

Returns
0 if the packet has no header extension, otherwise the first 16 bits of the header extension, in network order.
Note
0 could be a valid value for the first 16 bits, in that case RTPPacket::isExtended() should be use.

Definition at line 228 of file rtppkt.h.

RTPFixedHeader* RTPPacket::getHeader ( ) const
inlineprotectedinherited

Return low level structure for the header of the packet.

Returns
RTPFixedHeader pointer to the header of the packet.

Definition at line 321 of file rtppkt.h.

const RTPHeaderExt* RTPPacket::getHeaderExt ( ) const
inlineprotectedinherited

Get a pointer to RTPHeaderExt pointing after the RTP header (fixed part plus contributing sources).

No check for for the X bit is done.

Returns
header extension if present, garbage if not.

Definition at line 336 of file rtppkt.h.

uint32 RTPPacket::getHeaderSize ( ) const
inlineinherited

Get the length of the header, including contributing sources identifiers and header extension, if present.

Returns
number of octets.

Definition at line 114 of file rtppkt.h.

uint8 RTPPacket::getPaddingSize ( ) const
inlineinherited

Get the number of octets padding the end of the payload section.

Returns
Padding length in octets.

Definition at line 174 of file rtppkt.h.

const uint8* const RTPPacket::getPayload ( ) const
inlineinherited
Returns
pointer to the payload section of the packet.

Definition at line 121 of file rtppkt.h.

uint32 RTPPacket::getPayloadSize ( ) const
inlineinherited
Returns
length of the payload section, in octets.

Definition at line 128 of file rtppkt.h.

PayloadType RTPPacket::getPayloadType ( ) const
inlineinherited
Returns
value of the PT header field.

Definition at line 135 of file rtppkt.h.

uint8 RTPPacket::getProtocolVersion ( ) const
inlineinherited
Returns
RTP protocol version of packet.

Definition at line 156 of file rtppkt.h.

struct RFC2833Payload* RTPPacket::getRaw2833Payload ( void  )
inlineinherited

Fetch a raw 2833 packet.

Returns
low level 2833 data structure.

Definition at line 477 of file rtppkt.h.

const unsigned char* const RTPPacket::getRawPacket ( ) const
inlineinherited

Get the raw packet as it will be sent through the network.

Returns
memory zone where the raw packet structure is stored in.

Definition at line 268 of file rtppkt.h.

uint32 RTPPacket::getRawPacketSize ( ) const
inlineinherited

Get the raw packet length, including header, extension, payload and padding.

Returns
size of the raw packet structure.

Definition at line 278 of file rtppkt.h.

uint32 RTPPacket::getRawPacketSizeSrtp ( ) const
inlineinherited

Definition at line 282 of file rtppkt.h.

uint32 RTPPacket::getRawTimestamp ( ) const
inlineprotectedinherited

Obtain the absolute timestamp carried in the packet header.

Returns
32-bit timestamp in host order.

Definition at line 348 of file rtppkt.h.

uint16 RTPPacket::getSeqNum ( ) const
inlineinherited
Returns
value of the sequence number header field, in host order.

Definition at line 142 of file rtppkt.h.

size_t RTPPacket::getSizeOfFixedHeader ( ) const
inlineinherited

Definition at line 286 of file rtppkt.h.

uint32 RTPPacket::getTimestamp ( ) const
inlineinherited
Returns
packet timestamp in host order.

Definition at line 149 of file rtppkt.h.

bool RTPPacket::isExtended ( ) const
inlineinherited

Ask whether the packet contains header extensions.

Returns
true if the header extension bit is 1.

Definition at line 193 of file rtppkt.h.

bool RTPPacket::isMarked ( ) const
inlineinherited

Ask whether the packet is marked (for isntance, is a new talk spurt in some audio profiles).

Returns
true is the header marker bit is 1.

Definition at line 184 of file rtppkt.h.

bool RTPPacket::isPadded ( ) const
inlineinherited

Ask whether the packet contains padding bytes at the end.

Returns
true if the header padding bit is 1.

Definition at line 164 of file rtppkt.h.

bool OutgoingRTPPkt::operator!= ( const OutgoingRTPPkt p) const
inlineinherited

Outgoing packets are not equal if their sequence numbers differ.

Definition at line 667 of file rtppkt.h.

bool OutgoingRTPPkt::operator== ( const OutgoingRTPPkt p) const
inlineinherited

Outgoing packets are equal if their sequence numbers match.

Definition at line 660 of file rtppkt.h.

void OutgoingRTPPkt::protect ( uint32  ssrc,
CryptoContext pcc
)
inherited

Called packet is setup.

This private method computes the SRTP data and stores it in the packet. Then encrypt the payload data (ex padding).

Definition at line 249 of file rtppkt.cpp.

void RTPPacket::reComputePayLength ( bool  padding)
inherited

Re-compute payload length.

This recomputation may be necessary in case of SRTP. We need to decrypt the packet before we can handle padding. See takeInDataPacket in incqueue.cpp

Parameters
paddingIf true then set padding flag in RTP header and re-compute payloadSize.

Definition at line 178 of file rtppkt.cpp.

void RTPPacket::set2833Duration ( uint16  timestamp)
inlineinherited

Set 2833 duration field.

Parameters
timestampto use, native host machine byte order.

Definition at line 493 of file rtppkt.h.

void RTPPacket::setbuffer ( const void *  src,
size_t  len,
size_t  pos
)
inlineprotectedinherited

Definition at line 352 of file rtppkt.h.

void RTPPacket::setExtension ( bool  e)
inlineprotectedinherited

Definition at line 325 of file rtppkt.h.

void OutgoingRTPPkt::setMarker ( bool  mark)
inlineinherited

Specify the value of the marker bit.

By default, the marker bit of outgoing packets is false/0. This method allows to explicity specify and change that value.

Parameters
markvalue for the market bit.

Definition at line 645 of file rtppkt.h.

void OutgoingRTPPkt::setPayloadType ( PayloadType  pt)
inlineinherited
Parameters
ptPacket payload type.

Definition at line 591 of file rtppkt.h.

void OutgoingRTPPkt::setSeqNum ( uint16  seq)
inlineinherited

Sets the sequence number in the header.

Parameters
seqPacket sequence number, in host order.

Definition at line 600 of file rtppkt.h.

void OutgoingRTPPkt::setSSRC ( uint32  ssrc) const
inlineinherited

Set synchronization source numeric identifier.

Parameters
ssrc32-bit Synchronization SouRCe numeric identifier, in host order.

Definition at line 623 of file rtppkt.h.

void OutgoingRTPPkt::setSSRCNetwork ( uint32  ssrc) const
inlineinherited

Set synchronization source numeric identifier.

Special version to save endianness conversion.

Parameters
ssrc32-bit Synchronization SouRCe numeric identifier, in network order.

Definition at line 634 of file rtppkt.h.

void OutgoingRTPPkt::setTimestamp ( uint32  pts)
inlineinherited
Parameters
ptsPacket timestamp, in host order.

Definition at line 610 of file rtppkt.h.

Field Documentation

uint16 RTPPacket::cachedSeqNum
protectedinherited

Packet sequence number in host order.

Definition at line 356 of file rtppkt.h.

uint32 RTPPacket::cachedTimestamp
protectedinherited

Packet timestamp in host order (includes initial shift).

Definition at line 358 of file rtppkt.h.

uint32 RTPPacket::payloadSize
protectedinherited

note: payload (not full packet) size.

Definition at line 379 of file rtppkt.h.

uint32 RTPPacket::srtpDataOffset
protectedinherited

Offset into packet memory pointing to area for SRTP data.

This offset points to the memory where the SRTP protect will store the authentication and MKI data.

Definition at line 366 of file rtppkt.h.

int32 RTPPacket::srtpLength
protectedinherited

Lebgth of additional SRTP data.

Covers the SRTP authentication and MKI data.

Definition at line 373 of file rtppkt.h.

uint32 RTPPacket::total
protectedinherited

total length, including header, payload and padding

Definition at line 376 of file rtppkt.h.


The documentation for this class was generated from the following file:
