ost::TelTone Class Reference

An object that is used to sequence and extract telephony tones based on a telephony tone descriptor retrieved from the parsed international telephony tone database. More...

#include <audio2.h>

Inheritance diagram for ost::TelTone:
Inheritance graph
[legend]

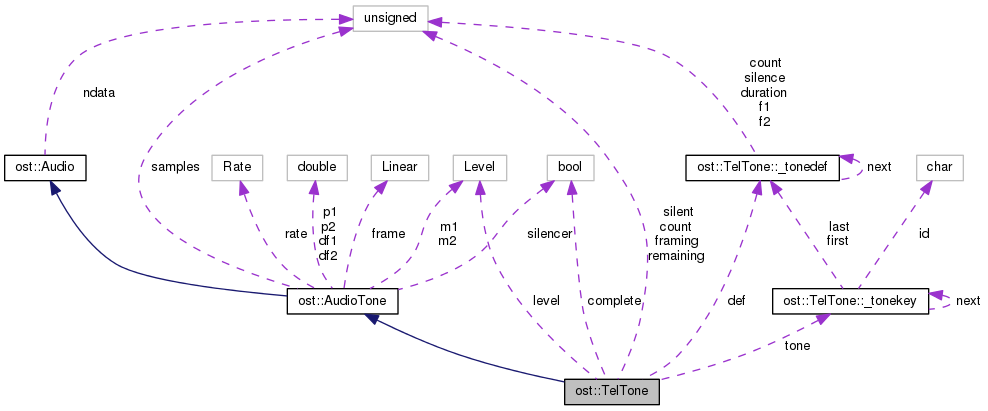

Collaboration diagram for ost::TelTone:
Collaboration graph
[legend]

Data Structures

struct  _tonedef

struct  _tonekey


Public Types

typedef struct
ost::TelTone::_tonedef
tonedef_t

typedef struct
ost::TelTone::_tonekey
tonekey_t

enum  Rate {
  rateUnknown, rate6khz = 6000, rate8khz = 8000, rate16khz = 16000,
  rate32khz = 32000, rate44khz = 44100
}
 Audio encoding rate, samples per second. More...

typedef enum Rate Rate

enum  Mode {
  modeRead, modeReadAny, modeReadOne, modeWrite,
  modeCache, modeInfo, modeFeed, modeAppend,
  modeCreate
}
 File processing mode, whether to skip missing files, etc. More...

typedef enum Mode Mode

enum  Encoding {
  unknownEncoding = 0, g721ADPCM, g722Audio, g722_7bit,
  g722_6bit, g723_2bit, g723_3bit, g723_5bit,
  gsmVoice, msgsmVoice, mulawAudio, alawAudio,
  mp1Audio, mp2Audio, mp3Audio, okiADPCM,
  voxADPCM, sx73Voice, sx96Voice, cdaStereo,
  cdaMono, pcm8Stereo, pcm8Mono, pcm16Stereo,
  pcm16Mono, pcm32Stereo, pcm32Mono, speexVoice,
  speexAudio, g729Audio, ilbcAudio, speexUltra,
  speexNarrow = speexVoice, speexWide = speexAudio, g723_4bit = g721ADPCM
}
 Audio encoding formats. More...

typedef enum Encoding Encoding

enum  Format {
  raw, snd, riff, mpeg,
  wave
}
 Audio container file format. More...

typedef enum Format Format

enum  DeviceMode { PLAY, RECORD, PLAYREC }
 Audio device access mode. More...

typedef enum DeviceMode DeviceMode

enum  Error {
  errSuccess = 0, errReadLast, errNotOpened, errEndOfFile,
  errStartOfFile, errRateInvalid, errEncodingInvalid, errReadInterrupt,
  errWriteInterrupt, errReadFailure, errWriteFailure, errReadIncomplete,
  errWriteIncomplete, errRequestInvalid, errTOCFailed, errStatFailed,
  errInvalidTrack, errPlaybackFailed, errNotPlaying, errNoCodec
}
 Audio error conditions. More...

typedef enum Error Error

typedef int16_t snd16_t

typedef int32_t snd32_t

typedef int16_t Level

typedef int16_t Sample

typedef int16_t * Linear

typedef unsigned long timeout_t

typedef unsigned char * Encoded


Public Member Functions

 TelTone (tonekey_t *key, Level level, timeout_t frame=20)
 Create a tone sequencing object for a specific telephony tone key id. More...

 ~TelTone ()

Linear getFrame (void)
 Generate and retrieve one frame of linear audio data for the telephony tone sequence being created. More...

bool isComplete (void)
 Check if all audio frames for this tone has been created. More...

Rate getRate (void)
 Get the sample encoding rate being used for the tone generator. More...

size_t getSamples (void)
 Get the frame size for the number of audio samples generated. More...

bool isSilent (void)
 Test if the tone generator is currently set to silence. More...

unsigned getFrames (Linear buffer, unsigned number)
 This is used to copy one or more pages of framed audio quickly to an external buffer. More...


Static Public Member Functions

static bool load (const char *pathname, const char *locale=NULL)
 Load a teltones database file into memory. More...

static tonekey_tfind (const char *tone, const char *locale=NULL)
 find an entry in the teltones database. More...

static Rate getRate (Encoding encoding)
 Return default sample rate associated with the specified audio encoding format. More...

static Rate getRate (Encoding e, Rate request)
 Return optional rate setting effect. More...

static int getFrame (Encoding encoding, int samples=0)
 Returns the number of bytes in a sample frame for the given encoding type, rounded up to the nearest integer. More...

static Level tolevel (float dbm)
 Convert dbm power level to integer value (0-32768). More...

static float todbm (Level power)
 Convert integer power levels to dbm. More...

static bool hasDevice (unsigned device=0)
 Test for the presense of a specified (indexed) audio device. More...

static AudioDevicegetDevice (unsigned device=0, DeviceMode mode=PLAY)
 Get a audio device object that can be used to play or record audio. More...

static const char * getCodecPath (void)
 Get pathname to where loadable codec modules are stored. More...

static const char * getMIME (Info &info)
 Get the mime descriptive type for a given Audio encoding description, usually retrieved from a newly opened audio file. More...

static const char * getName (Encoding encoding)
 Get the short ascii description used for the given audio encoding type. More...

static const char * getExtension (Encoding encoding)
 Get the preferred file extension name to use for a given audio encoding type. More...

static Encoding getEncoding (const char *name)
 Get the audio encoding format that is specified by a short ascii name. More...

static Encoding getStereo (Encoding encoding)
 Get the stereo encoding format associated with the given format. More...

static Encoding getMono (Encoding encoding)
 Get the mono encoding format associated with the given format. More...

static bool isLinear (Encoding encoding)
 Test if the audio encoding format is a linear one. More...

static bool isBuffered (Encoding encoding)
 Test if the audio encoding format must be packetized (that is, has irregular sized frames) and must be processed only through buffered codecs. More...

static bool isMono (Encoding encoding)
 Test if the audio encoding format is a mono format. More...

static bool isStereo (Encoding encoding)
 Test if the audio encoding format is a stereo format. More...

static timeout_t getFraming (Encoding encoding, timeout_t timeout=0)
 Return frame timing for an audio encoding format. More...

static timeout_t getFraming (Info &info, timeout_t timeout=0)
 Return frame time for an audio source description. More...

static bool isEndian (Encoding encoding)
 Test if the endian byte order of the encoding format is different from the machine's native byte order. More...

static bool isEndian (Info &info)
 Test if the endian byte order of the audio source description is different from the machine's native byte order. More...

static bool swapEndian (Encoding encoding, void *buffer, unsigned number)
 Optionally swap endian of audio data if the encoding format endian byte order is different from the machine's native endian. More...

static bool swapEndian (Info &info, void *buffer, unsigned number)
 Optionally swap endian of audio data if the audio source description byte order is different from the machine's native endian byte order. More...

static void swapEncoded (Info &info, Encoded data, size_t bytes)
 Optionally swap endian of encoded audio data based on the audio encoding type, and relationship to native byte order. More...

static Level getImpulse (Encoding encoding, void *buffer, unsigned number)
 Get the energey impulse level of a frame of audio data. More...

static Level getImpulse (Info &info, void *buffer, unsigned number=0)
 Get the energey impulse level of a frame of audio data. More...

static Level getPeak (Encoding encoding, void *buffer, unsigned number)
 Get the peak (highest energy) level found in a frame of audio data. More...

static Level getPeak (Info &info, void *buffer, unsigned number=0)
 Get the peak (highest energy) level found in a frame of audio data. More...

static void toTimestamp (timeout_t duration, char *address, size_t size)
 Provide ascii timestamp representation of a timeout value. More...

static timeout_t toTimeout (const char *timestamp)
 Convert ascii timestamp representation to a timeout number. More...

static int getCount (Encoding encoding)
 Returns the number of samples in all channels for a frame in the given encoding. More...

static unsigned long toSamples (Encoding encoding, size_t bytes)
 Compute byte counts of audio data into number of samples based on the audio encoding format used. More...

static unsigned long toSamples (Info &info, size_t bytes)
 Compute byte counts of audio data into number of samples based on the audio source description used. More...

static size_t toBytes (Info &info, unsigned long number)
 Compute the number of bytes a given number of samples in a given audio encoding will occupy. More...

static size_t toBytes (Encoding encoding, unsigned long number)
 Compute the number of bytes a given number of samples in a given audio encoding will occupy. More...

static void fill (unsigned char *address, int number, Encoding encoding)
 Fill an audio buffer with "empty" (silent) audio data, based on the audio encoding format. More...

static bool loadPlugin (const char *path)
 Load a dso plugin (codec plugin), used internally... More...

static size_t maxFramesize (Info &info)
 Maximum framesize for a given coding that may be needed to store a result. More...


Static Public Attributes

static const unsigned ndata


Protected Member Functions

void silence (void)
 Set the frame to silent. More...

void reset (void)
 Reset the tone generator completely. More...

void cleanup (void)
 Cleanup for virtual destructors to use. More...

void single (unsigned freq, Level level)
 Set frame to generate single tone... More...

void dual (unsigned f1, unsigned f2, Level l1, Level l2)
 Set frame to generate dual tone... More...


Protected Attributes

tonekey_ttone

tonedef_tdef

unsigned remaining

unsigned silent

unsigned count

timeout_t framing

Level level

bool complete

Rate rate

unsigned samples

Linear frame

double df1

double df2

double p1

double p2

Level m1

Level m2

bool silencer


Detailed Description

An object that is used to sequence and extract telephony tones based on a telephony tone descriptor retrieved from the parsed international telephony tone database.

Author
David Sugar dyfet.nosp@m.@ost.nosp@m.el.co.nosp@m.m telephony tone sequencing object.

Definition at line 2056 of file audio2.h.

Member Typedef Documentation

typedef enum DeviceMode ost::Audio::DeviceMode
inherited

Definition at line 247 of file audio2.h.

typedef unsigned char* ost::Audio::Encoded
inherited

Definition at line 143 of file audio2.h.

typedef enum Encoding ost::Audio::Encoding
inherited

Definition at line 225 of file audio2.h.

typedef enum Error ost::Audio::Error
inherited

Definition at line 274 of file audio2.h.

typedef enum Format ost::Audio::Format
inherited

Definition at line 237 of file audio2.h.

typedef int16_t ost::Audio::Level
inherited

Definition at line 101 of file audio2.h.

typedef int16_t* ost::Audio::Linear
inherited

Definition at line 103 of file audio2.h.

typedef enum Mode ost::Audio::Mode
inherited

Definition at line 175 of file audio2.h.

typedef enum Rate ost::Audio::Rate
inherited

Definition at line 157 of file audio2.h.

typedef int16_t ost::Audio::Sample
inherited

Definition at line 102 of file audio2.h.

typedef int16_t ost::Audio::snd16_t
inherited

Definition at line 99 of file audio2.h.

typedef int32_t ost::Audio::snd32_t
inherited

Definition at line 100 of file audio2.h.

typedef unsigned long ost::Audio::timeout_t
inherited

Definition at line 104 of file audio2.h.

Member Enumeration Documentation

enum ost::Audio::DeviceMode
inherited

Audio device access mode.

Enumerator
PLAY
RECORD
PLAYREC

Definition at line 242 of file audio2.h.

enum ost::Audio::Encoding
inherited

Audio encoding formats.

Enumerator
unknownEncoding
g721ADPCM
g722Audio
g722_7bit
g722_6bit
g723_2bit
g723_3bit
g723_5bit
gsmVoice
msgsmVoice
mulawAudio
alawAudio
mp1Audio
mp2Audio
mp3Audio
okiADPCM
voxADPCM
sx73Voice
sx96Voice
cdaStereo
cdaMono
pcm8Stereo
pcm8Mono
pcm16Stereo
pcm16Mono
pcm32Stereo
pcm32Mono
speexVoice
speexAudio
g729Audio
ilbcAudio
speexUltra
speexNarrow
speexWide
g723_4bit

Definition at line 180 of file audio2.h.

enum ost::Audio::Error
inherited

Audio error conditions.

Enumerator
errSuccess
errReadLast
errNotOpened
errEndOfFile
errStartOfFile
errRateInvalid
errEncodingInvalid
errReadInterrupt
errWriteInterrupt
errReadFailure
errWriteFailure
errReadIncomplete
errWriteIncomplete
errRequestInvalid
errTOCFailed
errStatFailed
errInvalidTrack
errPlaybackFailed
errNotPlaying
errNoCodec

Definition at line 252 of file audio2.h.

enum ost::Audio::Format
inherited

Audio container file format.

Enumerator
raw
snd
riff
mpeg
wave

Definition at line 230 of file audio2.h.

enum ost::Audio::Mode
inherited

File processing mode, whether to skip missing files, etc.

Enumerator
modeRead
modeReadAny
modeReadOne
modeWrite
modeCache
modeInfo
modeFeed
modeAppend
modeCreate

Definition at line 162 of file audio2.h.

enum ost::Audio::Rate
inherited

Audio encoding rate, samples per second.

Enumerator
rateUnknown
rate6khz
rate8khz
rate16khz
rate32khz
rate44khz

Definition at line 148 of file audio2.h.

Constructor & Destructor Documentation

ost::TelTone::TelTone ( tonekey_t key,
Level  level,
timeout_t  frame = 20
)

Create a tone sequencing object for a specific telephony tone key id.

Parameters
keyfor telephony tone.
levelfor generated tones.
frametiming to use in processing.
ost::TelTone::~TelTone ( )

Member Function Documentation

void ost::AudioTone::cleanup ( void  )
protectedinherited

Cleanup for virtual destructors to use.

void ost::AudioTone::dual ( unsigned  f1,
unsigned  f2,
Level  l1,
Level  l2
)
protectedinherited

Set frame to generate dual tone...

Parameters
f1frequency of tone 1
f2frequency of tone 2
l1level of tone 1
l2level of tone 2
static void ost::Audio::fill ( unsigned char *  address,
int  number,
Encoding  encoding
)
staticinherited

Fill an audio buffer with "empty" (silent) audio data, based on the audio encoding format.

Parameters
addressof data to fill.
numberof samples to fill.
encodingformat of data.
static tonekey_t* ost::TelTone::find ( const char *  tone,
const char *  locale = NULL
)
static

find an entry in the teltones database.

Returns
key of tone list if found, else NULL
Parameters
tonename
localeto optionally search under
static const char* ost::Audio::getCodecPath ( void  )
staticinherited

Get pathname to where loadable codec modules are stored.

Returns
file path to loadable codecs.
static int ost::Audio::getCount ( Encoding  encoding)
staticinherited

Returns the number of samples in all channels for a frame in the given encoding.

For example, pcm32Stereo has a frame size of 8 bytes: Note that different codecs have different definitions of a frame - for example, compressed encodings have a rather large frame size relative to the sample size due to the way bytes are fed to the decompression engine.

Parameters
encodingThe encoding to calculate the frame sample count for.
Returns
samples The number of samples in a frame of the given encoding.
static AudioDevice* ost::Audio::getDevice ( unsigned  device = 0,
DeviceMode  mode = PLAY
)
staticinherited

Get a audio device object that can be used to play or record audio.

This is normally a local soundcard, though an abstract base class is returned, so the underlying device may be different.

Parameters
deviceindex or 0 for default audio device.
modeof device; play, record, or full duplex.
Returns
pointer to abstract audio device object interface class.
static Encoding ost::Audio::getEncoding ( const char *  name)
staticinherited

Get the audio encoding format that is specified by a short ascii name.

This will either accept names like those returned from getName(), or .xxx file extensions, and return the audio encoding type associated with the name or extension.

Parameters
nameof encoding or file extension.
Returns
audio encoding format.
See Also
getName
static const char* ost::Audio::getExtension ( Encoding  encoding)
staticinherited

Get the preferred file extension name to use for a given audio encoding type.

Parameters
encodingformat.
Returns
ascii file extension to use.
static int ost::Audio::getFrame ( Encoding  encoding,
int  samples = 0
)
staticinherited

Returns the number of bytes in a sample frame for the given encoding type, rounded up to the nearest integer.

A frame is defined as the minimum number of bytes necessary to create a point or points in the output waveform for all output channels. For example, 16-bit mono PCM has a frame size of two (because those two bytes constitute a point in the output waveform). GSM has it's own definition of a frame which involves decompressing a sequence of bytes to determine the final points on the output waveform. The minimum number of bytes you can feed to the decompression engine is 32.5 (260 bits), so this function will return 33 (because we round up) given an encoding type of GSM. Other compressed encodings will return similar results. Be prepared to deal with nonintuitive return values for rare encodings.

Parameters
encodingThe encoding type to get the frame size for.
samplesReserved. Use zero.
Returns
The number of bytes in a frame for the given encoding.
Linear ost::TelTone::getFrame ( void  )
virtual

Generate and retrieve one frame of linear audio data for the telephony tone sequence being created.

Returns
pointer to samples generated.

Reimplemented from ost::AudioTone.

unsigned ost::AudioTone::getFrames ( Linear  buffer,
unsigned  number
)
inherited

This is used to copy one or more pages of framed audio quickly to an external buffer.

Returns
number of frames copied.
Parameters
bufferto copy into.
numberof frames requested.
static timeout_t ost::Audio::getFraming ( Encoding  encoding,
timeout_t  timeout = 0
)
staticinherited

Return frame timing for an audio encoding format.

Returns
frame time to use in milliseconds.
Parameters
encodingof frame to get timing segment for.
timeoutof frame time segment to request.
static timeout_t ost::Audio::getFraming ( Info info,
timeout_t  timeout = 0
)
staticinherited

Return frame time for an audio source description.

Returns
frame time to use in milliseconds.
Parameters
infodescriptor of frame encoding to get timing segment for.
timeoutof frame time segment to request.
static Level ost::Audio::getImpulse ( Encoding  encoding,
void *  buffer,
unsigned  number
)
staticinherited

Get the energey impulse level of a frame of audio data.

Returns
impulse energy level of audio data.
Parameters
encodingformat of data to examine.
bufferof audio data to examine.
numberof audio samples to examine.
static Level ost::Audio::getImpulse ( Info info,
void *  buffer,
unsigned  number = 0
)
staticinherited

Get the energey impulse level of a frame of audio data.

Returns
impulse energy level of audio data.
Parameters
infoencoding source description object.
bufferof audio data to examine.
numberof audio samples to examine.
static const char* ost::Audio::getMIME ( Info info)
staticinherited

Get the mime descriptive type for a given Audio encoding description, usually retrieved from a newly opened audio file.

Parameters
infosource description object
Returns
text of mime type to use for this audio source.
static Encoding ost::Audio::getMono ( Encoding  encoding)
staticinherited

Get the mono encoding format associated with the given format.

Parameters
encodingformat.
Returns
associated mono audio encoding format.
static const char* ost::Audio::getName ( Encoding  encoding)
staticinherited

Get the short ascii description used for the given audio encoding type.

Parameters
encodingformat.
Returns
ascii name of encoding format.
static Level ost::Audio::getPeak ( Encoding  encoding,
void *  buffer,
unsigned  number
)
staticinherited

Get the peak (highest energy) level found in a frame of audio data.

Returns
peak energy level found in data.
Parameters
encodingformat of data.
bufferof audio data.
numberof samples to examine.
static Level ost::Audio::getPeak ( Info info,
void *  buffer,
unsigned  number = 0
)
staticinherited

Get the peak (highest energy) level found in a frame of audio data.

Returns
peak energy level found in data.
Parameters
infodescription object of audio data.
bufferof audio data.
numberof samples to examine.
static Rate ost::Audio::getRate ( Encoding  encoding)
staticinherited

Return default sample rate associated with the specified audio encoding format.

Returns
sample rate for audio data.
Parameters
encodingformat.
static Rate ost::Audio::getRate ( Encoding  e,
Rate  request
)
staticinherited

Return optional rate setting effect.

Many codecs are fixed rate.

Returns
result rate for audio date.
Parameters
encodingformat.
requestedrate.
Rate ost::AudioTone::getRate ( void  )
inlineinherited

Get the sample encoding rate being used for the tone generator.

Returns
sample rate in samples per second.

Definition at line 823 of file audio2.h.

size_t ost::AudioTone::getSamples ( void  )
inlineinherited

Get the frame size for the number of audio samples generated.

Returns
number of samples processed in frame.

Definition at line 831 of file audio2.h.

static Encoding ost::Audio::getStereo ( Encoding  encoding)
staticinherited

Get the stereo encoding format associated with the given format.

Parameters
encodingformat being tested for stereo.
Returns
associated stereo audio encoding format.
static bool ost::Audio::hasDevice ( unsigned  device = 0)
staticinherited

Test for the presense of a specified (indexed) audio device.

This is normally used to test for local soundcard access.

Parameters
deviceindex or 0 for default audio device.
Returns
true if device exists.
static bool ost::Audio::isBuffered ( Encoding  encoding)
staticinherited

Test if the audio encoding format must be packetized (that is, has irregular sized frames) and must be processed only through buffered codecs.

Returns
true if packetized audio.
Parameters
encodingformat.
bool ost::TelTone::isComplete ( void  )
virtual

Check if all audio frames for this tone has been created.

Some telephony tones, such as dialtone, may be infinite...

Returns
true if audio is complete.

Reimplemented from ost::AudioTone.

static bool ost::Audio::isEndian ( Encoding  encoding)
staticinherited

Test if the endian byte order of the encoding format is different from the machine's native byte order.

Returns
true if endian format is different.
Parameters
encodingformat.
static bool ost::Audio::isEndian ( Info info)
staticinherited

Test if the endian byte order of the audio source description is different from the machine's native byte order.

Returns
true if endian format is different.
Parameters
infosource description object.
static bool ost::Audio::isLinear ( Encoding  encoding)
staticinherited

Test if the audio encoding format is a linear one.

Returns
true if encoding format is linear audio data.
Parameters
encodingformat.
static bool ost::Audio::isMono ( Encoding  encoding)
staticinherited

Test if the audio encoding format is a mono format.

Returns
true if encoding format is mono audio data.
Parameters
encodingformat.
bool ost::AudioTone::isSilent ( void  )
inherited

Test if the tone generator is currently set to silence.

Returns
true if generator set for silence.
static bool ost::Audio::isStereo ( Encoding  encoding)
staticinherited

Test if the audio encoding format is a stereo format.

Returns
true if encoding format is stereo audio data.
Parameters
encodingformat.
static bool ost::TelTone::load ( const char *  pathname,
const char *  locale = NULL
)
static

Load a teltones database file into memory.

Returns
true if successful
Parameters
pathnameof file to load.
localeto optionally load.
static bool ost::Audio::loadPlugin ( const char *  path)
staticinherited

Load a dso plugin (codec plugin), used internally...

Returns
true if loaded.
Parameters
pathto codec.
static size_t ost::Audio::maxFramesize ( Info info)
staticinherited

Maximum framesize for a given coding that may be needed to store a result.

Parameters
infosource description object.
Returns
maximum possible frame size to allocate for encoded data.
void ost::AudioTone::reset ( void  )
protectedinherited

Reset the tone generator completely.

Produces silence.,

void ost::AudioTone::silence ( void  )
protectedinherited

Set the frame to silent.

void ost::AudioTone::single ( unsigned  freq,
Level  level
)
protectedinherited

Set frame to generate single tone...

Parameters
freqof tone.
levelof tone.
static void ost::Audio::swapEncoded ( Info info,
Encoded  data,
size_t  bytes
)
staticinherited

Optionally swap endian of encoded audio data based on the audio encoding type, and relationship to native byte order.

Parameters
infosource description of object.
bufferof audio data.
numberof bytes of audio data.
static bool ost::Audio::swapEndian ( Encoding  encoding,
void *  buffer,
unsigned  number
)
staticinherited

Optionally swap endian of audio data if the encoding format endian byte order is different from the machine's native endian.

Returns
true if endian format was different.
Parameters
encodingformat of data.
bufferof audio data.
numberof audio samples.
static bool ost::Audio::swapEndian ( Info info,
void *  buffer,
unsigned  number
)
staticinherited

Optionally swap endian of audio data if the audio source description byte order is different from the machine's native endian byte order.

Returns
true if endian format was different.
Parameters
infosource description object of data.
bufferof audio data.
numberof audio samples.
static size_t ost::Audio::toBytes ( Info info,
unsigned long  number
)
staticinherited

Compute the number of bytes a given number of samples in a given audio encoding will occupy.

Returns
number of bytes samples will occupy.
Parameters
infoencoding source description.
numberof samples.
static size_t ost::Audio::toBytes ( Encoding  encoding,
unsigned long  number
)
staticinherited

Compute the number of bytes a given number of samples in a given audio encoding will occupy.

Returns
number of bytes samples will occupy.
Parameters
encodingformat.
numberof samples.
static float ost::Audio::todbm ( Level  power)
staticinherited

Convert integer power levels to dbm.

Parameters
powerlevel.
Returns
dbm power level.
static Level ost::Audio::tolevel ( float  dbm)
staticinherited

Convert dbm power level to integer value (0-32768).

Parameters
dbmpower level
Returns
integer value.
static unsigned long ost::Audio::toSamples ( Encoding  encoding,
size_t  bytes
)
staticinherited

Compute byte counts of audio data into number of samples based on the audio encoding format used.

Returns
number of audio samples in specified data.
Parameters
encodingformat.
bytesof data.
static unsigned long ost::Audio::toSamples ( Info info,
size_t  bytes
)
staticinherited

Compute byte counts of audio data into number of samples based on the audio source description used.

Returns
number of audio samples in specified data.
Parameters
infoencoding source description.
bytesof data.
static timeout_t ost::Audio::toTimeout ( const char *  timestamp)
staticinherited

Convert ascii timestamp representation to a timeout number.

Parameters
timestampascii data.
Returns
timeout_t duration from data.
static void ost::Audio::toTimestamp ( timeout_t  duration,
char *  address,
size_t  size
)
staticinherited

Provide ascii timestamp representation of a timeout value.

Parameters
durationtimeout value
addressfor ascii data.
sizeof ascii data.

Field Documentation

bool ost::TelTone::complete
protected

Definition at line 2125 of file audio2.h.

unsigned ost::TelTone::count
protected

Definition at line 2122 of file audio2.h.

tonedef_t* ost::TelTone::def
protected

Definition at line 2121 of file audio2.h.

double ost::AudioTone::df1
protectedinherited

Definition at line 780 of file audio2.h.

double ost::AudioTone::df2
protectedinherited

Definition at line 780 of file audio2.h.

Linear ost::AudioTone::frame
protectedinherited

Definition at line 779 of file audio2.h.

timeout_t ost::TelTone::framing
protected

Definition at line 2123 of file audio2.h.

Level ost::TelTone::level
protected

Definition at line 2124 of file audio2.h.

Level ost::AudioTone::m1
protectedinherited

Definition at line 781 of file audio2.h.

Level ost::AudioTone::m2
protectedinherited

Definition at line 781 of file audio2.h.

const unsigned ost::Audio::ndata
staticinherited

Definition at line 107 of file audio2.h.

double ost::AudioTone::p1
protectedinherited

Definition at line 780 of file audio2.h.

double ost::AudioTone::p2
protectedinherited

Definition at line 780 of file audio2.h.

Rate ost::AudioTone::rate
protectedinherited

Definition at line 777 of file audio2.h.

unsigned ost::TelTone::remaining
protected

Definition at line 2122 of file audio2.h.

unsigned ost::AudioTone::samples
protectedinherited

Definition at line 778 of file audio2.h.

bool ost::AudioTone::silencer
protectedinherited

Definition at line 782 of file audio2.h.

unsigned ost::TelTone::silent
protected

Definition at line 2122 of file audio2.h.

tonekey_t* ost::TelTone::tone
protected

Definition at line 2120 of file audio2.h.


The documentation for this class was generated from the following file:
